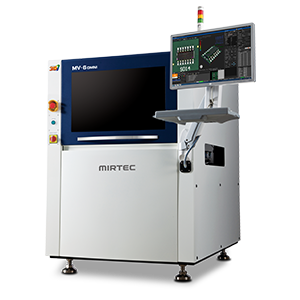

3D Inspection Machine MV-6 OMNI (AOI)

MIRTEC 3D INSPECTION MACHINE MV-6 OMNI
MIRTEC has implemented a next-generation vision system featuring 7.7㎛ high-resolution lenses for greater precision and stability in inspection. Additionally, the CoaXPress interface enables high-speed inspection, while the 25M high-resolution camera provides a large field of view (FOV) for enhanced performance.

Many 3D AOI systems on the market use conventional lenses, which cause image distortion. All of Mirtec 3D AOI systems are equipped with telecentric lenses, eliminating image errors caused by perspective distortion and ensuring highly precise 3D inspections.
