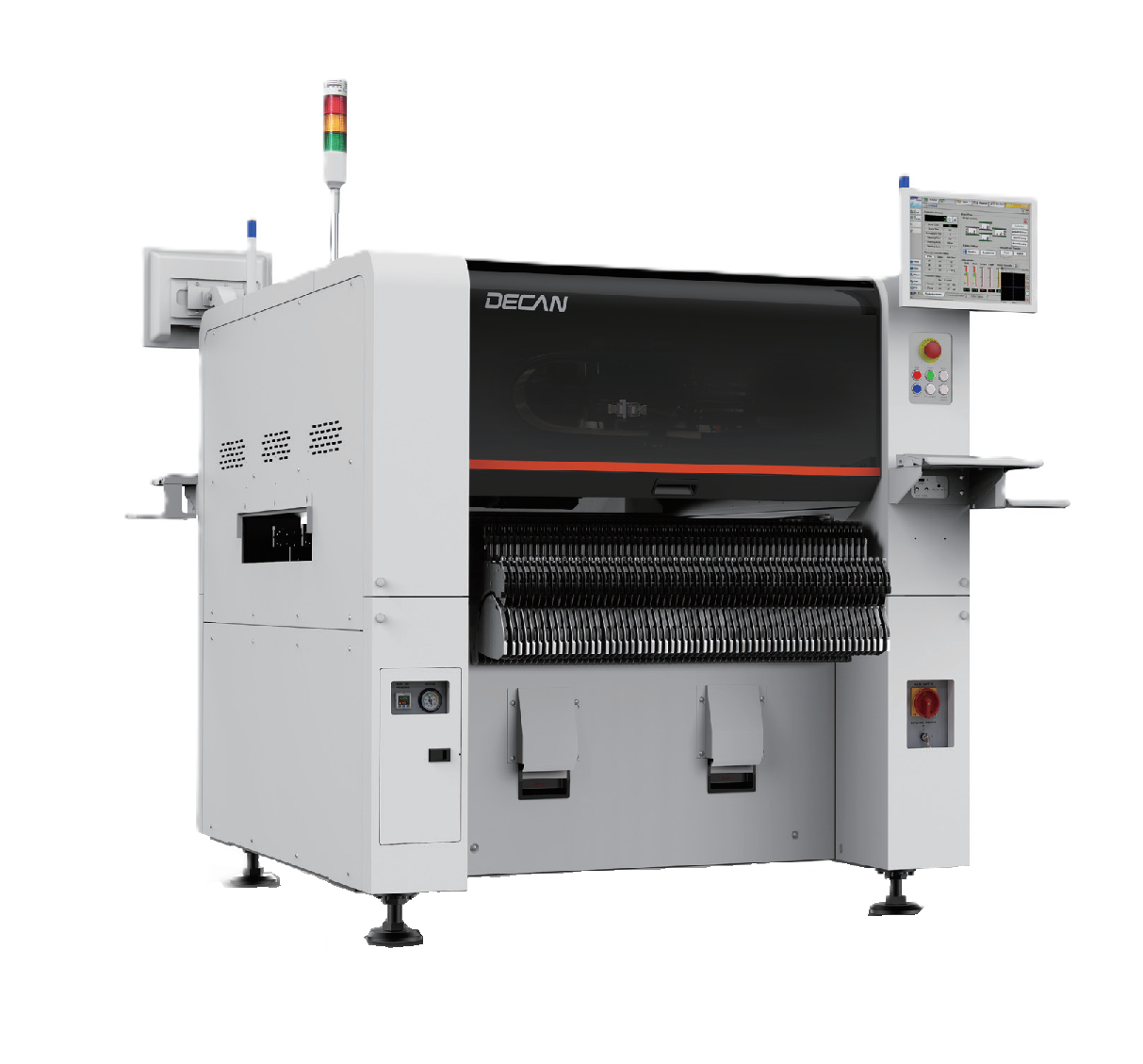

Chip Mounter Decan L2

The DECAN Series is a high-performance placement machine by Hanwha, designed to handle a wide range of components and maximize productivity. It is known for its speed, accuracy, and flexibility in production.

Number of Spindles: 6 Spindle x 2 Gantry.
Placement Speed: 56,000 CPH (Optimum).
Placement Accuracy: Chip ±30 μm @ Cpk ≥ 1.0, IC ±40 μm @ Cpk ≥ 1.0.
Component Range: Fly Camera 0402 ~ □21 mm, Fix Camera ~□42 mm (Standard), ~□55 mm (MFOV).
Max. Height: 12 mm (Fly), 25 mm (Fix).
PCB Size (mm): Min. L50 x W40, Max. Single Lane ~ L510 x W460 (Standard), ~ L1,200 x W460 (Option), Dual Lane ~ L510 x W250 (Standard), ~ L1,200 x W250 (Option).
PCB Thickness (mm): 0.38 ~ 4.2.
Feeder Capacity: 120 ea / 112 ea (Docking Cart).
Utility: Power 3 Phase, AC 200 / 208 / 220 / 240 / 380 / 415V ±10% (50/60 Hz), Max. 5.0 kVA, Air Consumption 5.0 ~ 7.0 kgf/cm², 50 Nℓ/min.
Weight (kg): Approx. 1,800.
External Dimension (mm): L1,430 x D1,740 x H1,485.
