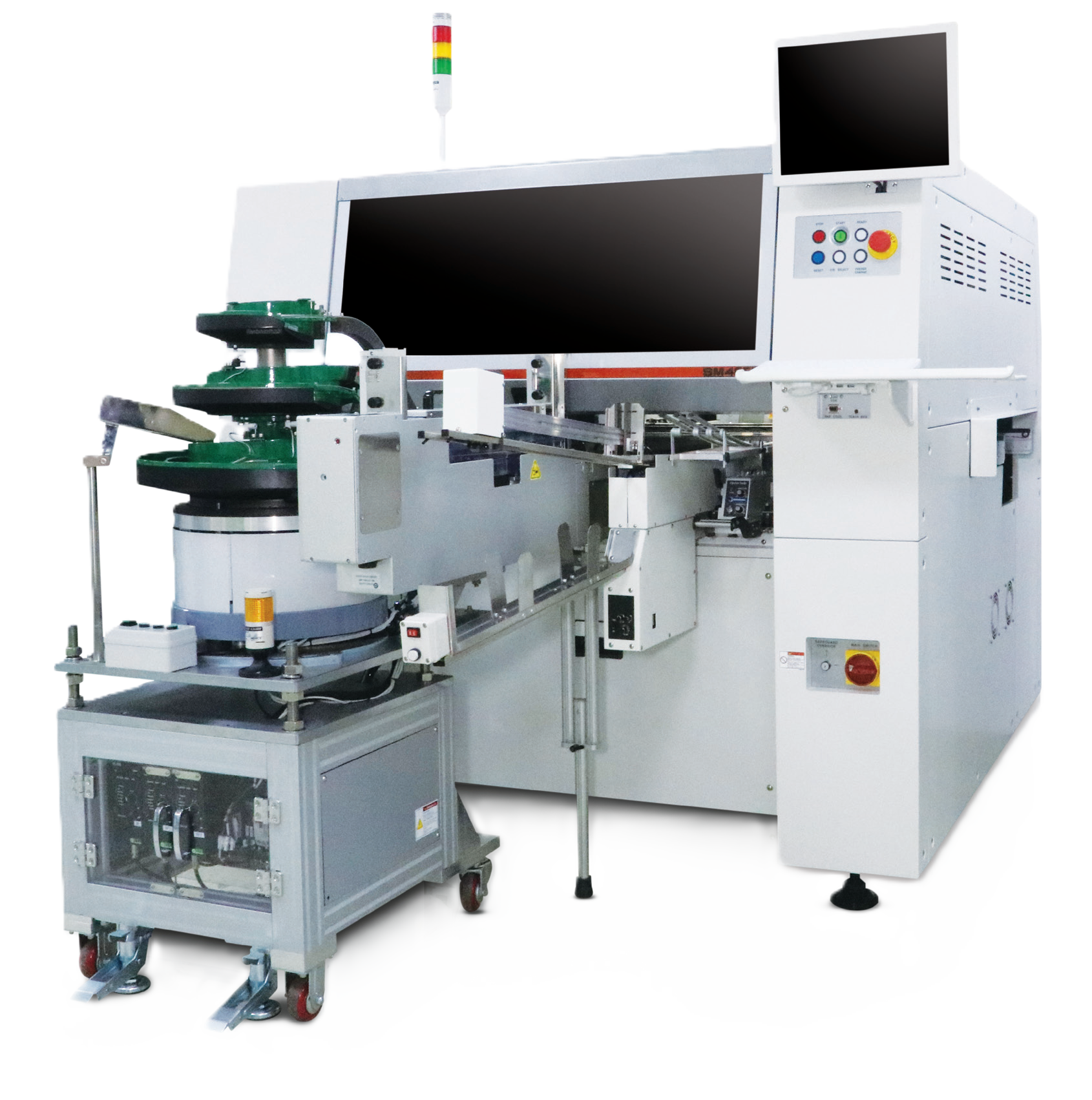

Multi-functional hybrid mounter and inserter Hanwha SM485P

Hanwha SM485P – Smart Hybrid Pick & Place Machine

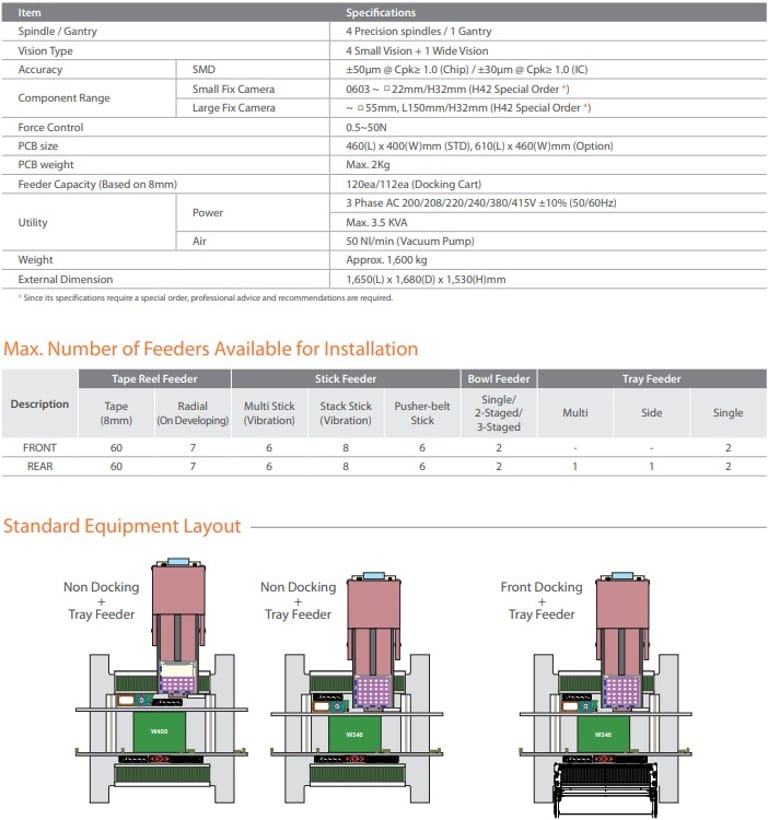

The Hanwha SM485P is a high-precision, multi-functional hybrid pick & place machine designed for modern SMT assembly. It reliably places both standard surface-mount (SMD) components and various odd-type or insert components with a placement speed of up to ~12,000 CPH (optimum) and robust accuracy. The machine uses a 4-spindle gantry with multiple vision cameras to ensure precise alignment and component handling across a wide size range.

Key features include:

• Hybrid capability to mount SMD, through-hole, radial, and odd-shaped components.

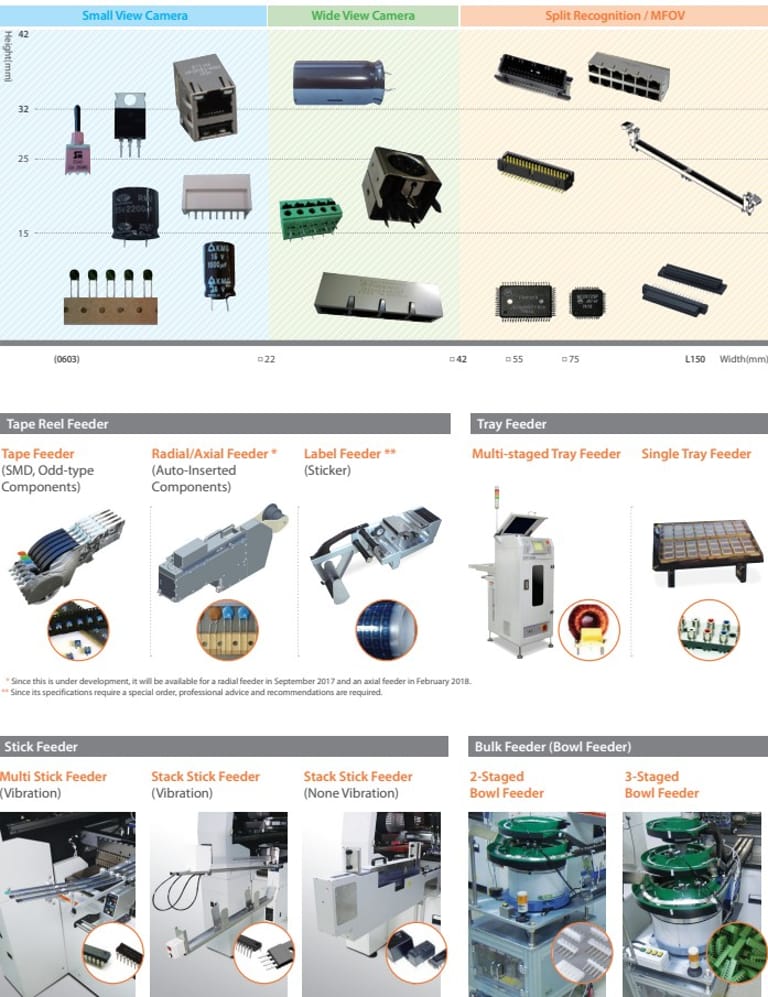

• Precision vision alignment using multiple small and wide cameras.

• Support for large and tall components (up to ~44 mm with option).

• Flexible feeder compatibility for tape, tray, stick, bowl, and other feeder types.



Optional features (available add-ons):

• Lead coplanarity inspection — laser-based checking for bent leads.

• Height sensor — post-placement height verification to improve quality control.

• Post-Bonding Inspection (PBI) — vision inspection after placing shield cans.

• Component value verifier (e.g., LCR checker) for automatic component testing.

• Intelligent, multi-tray, SMART, radial, and bowl feeders to enhance flexibility and throughput.
