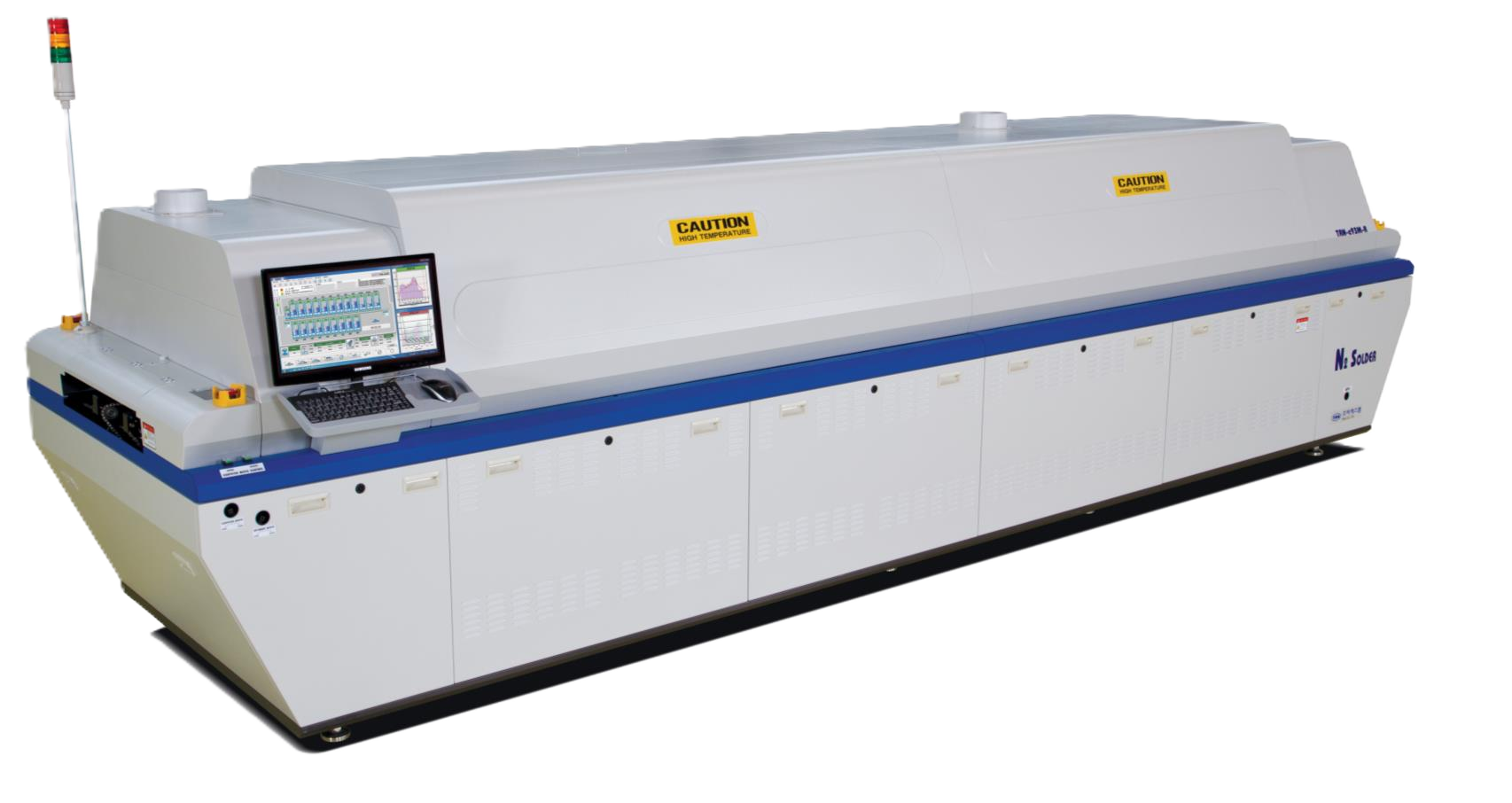

Nitrogen Reflow Oven TRN III Series

TRN Series, the top-level model to realize Econology and Humanism, pursued by TSM. Deliver our cutting-edge technology and best product performance to our valuable customers all the time.

· Realize Flux Zero in OVEN -> equip FMS applied with patent technology

• · Thermal Interference Innovation in each zone -> Able to set up temperature difference with 60ºC in max. of interzone

• · Internal Heat Reduction of Reflow -> apply New Emission System

• · Real-time Monitoring (optional)

  • - Real-time Temperature Profile Monitoring (RTPM)

  • - Real-time Oxygen Concentration Monitoring in each zone (RPPM)

  • - Conveyor Vibration Monitoring

  • - Monitoring a number of rotations of Blower Motor

  • - Circulation Temperature Monitoring of FMS

  • - Output Monitoring of Heater Control

  • - Alert of Conveyor Chain Oil Level

  • - Alert of Dust Collection Flux Level

• · Powerful performance of FMS ever before with double sized capacity of FMS installation (2x8=>2x12A)

• · Reduction of N₂ consumption with more than 20% compared to previous models (fan size / change of perforated plate)

• · Improved ppm performance with more than 30% compared to previous models (curtain shutter applied)

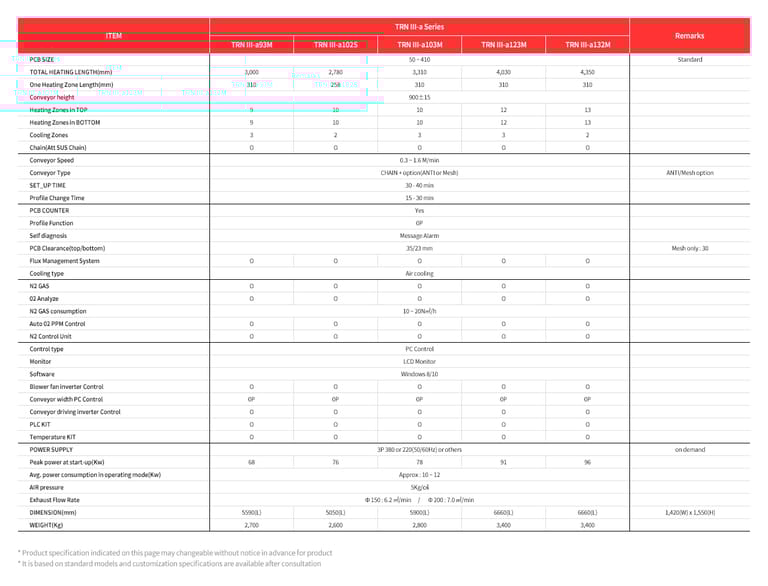

Main functions
FMS, Heat Discharging System

Ventilation cost saving during process by discharging the Heat outside through the way of sealed duct

Large capacity FMS

Significantly improved cooling and Flux dust performance with twice larger capacity

Circulation Temperature Monitoring of FMS

Checking operation condition of FMS in real time if abnormal, alarm functions.
